Model CRW-S WEATHER RECEIVER

Additional Images Specifications Instructions Price List Setup Software

The Gorman Redlich Model CRW-S Weather Receiver is a highly sensitive and selective receiver for National Weather Service (NWS) transmissions. It's equipped with a SAME decoder and a digital tone decoder that processes the 1050 Hz signal tone for automatic audible and visual alarm signals in the event of emergency situations. The Model CRW-S has rear terminals for remoting and a coaxial connector for external antennas. The 1050 Hz will close a relay in the Model CRW-S receiver. The 1050 Hz tone will also demute the receiver, activate a flashing LED and cause the NWS audio (600 ohm at 0 dbm) to be gated to a pair of rear terminals which can be used for remote alarm. Continuous audio is also available (600 ohm at 0 dbm) with another pair of rear terminals and may be used for recording. The F.C.C. has authorized AM, FM and TV stations to rebroadcast weather transmissions originated by the NWS provided that commercials in connection with weather broadcast do not convey an endorsement by the government. The CRW-S is easily configurable using the Gorman-Redlich Setup Software (Windows XP/Vista/7 and DOS compatible).

Specifications Sensitivity: .28 microvolts for 12 dB (S&N)/N .38 microvolts for 20 dB quieting Double conversion receiver Adjacent channel (+25kHz down 70 dB) Spurious Responses: -60 dB max Frequencies: 162.40, 162.425, 162.45, 162.475, 162.50, 162.525, 162.55 Weather receiver is supplied with all of the (7) frequencies listed; switch selectable, frequency synthesized,  and crystal controlled. Temperature: -10 degrees to +60 degrees C Relay Closure: By 1050 Hz tone signal remote switch or front panel switch. Demuting:: By 1050 Hz tone remote switch or front panel switch. Printed Circuit Boards: Glass epoxy standard, MIL spec, plated thru holes Power: 110-130V, 60 Hz, 3 Watts Rear Terminals: Remote mute/demute activated by momentary contact closure. Remote relay reset activated by momentary contact closure. Alarm audio (600 ohm, 1V P-P, 0 dBm) Continuous audio (600 ohm, 1V P-P, 0 dBm) Relay dry contacts 50 ohm antenna (F connector receptacle) 2 spare terminals for 12 volt battery backup (55 ma. on standby) Shipping Weight: 4 lbs. Finish: Front panel - black anodized, brushed aluminum Chassis - all metal.  1 3/4 inches rack space   ACCESSORIES   Outdoor Antennas: (1) Vertical quarter wave whip with mounting  hardware (2) 6 element yagi. 10 dB gain, 17 dB F/B

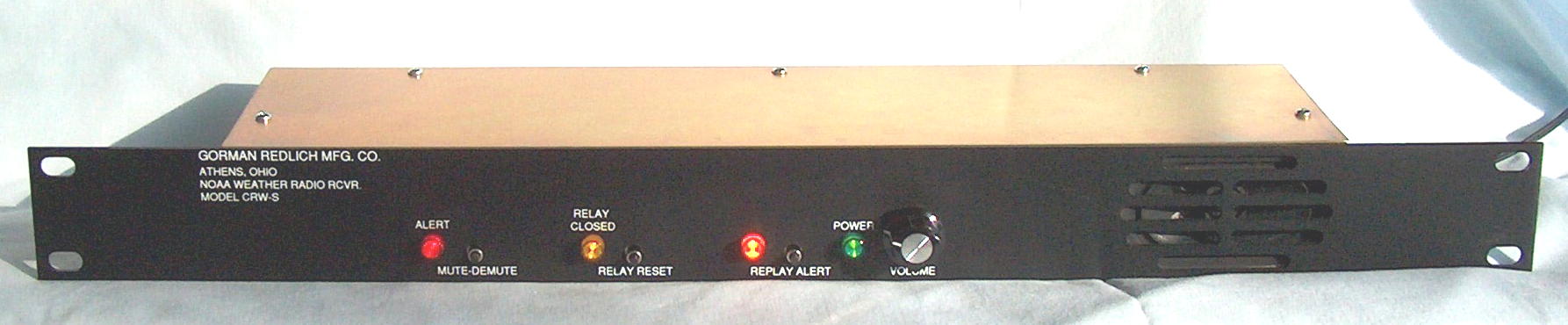

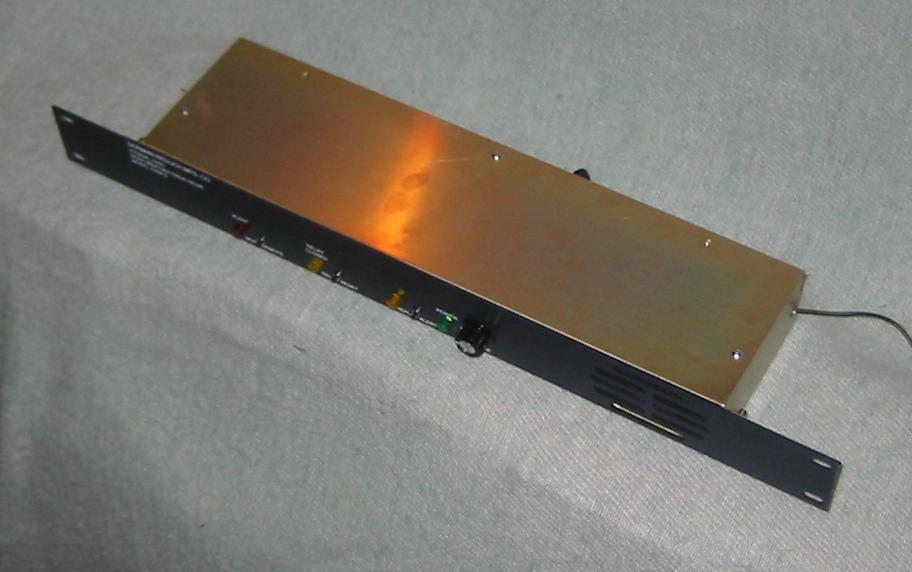

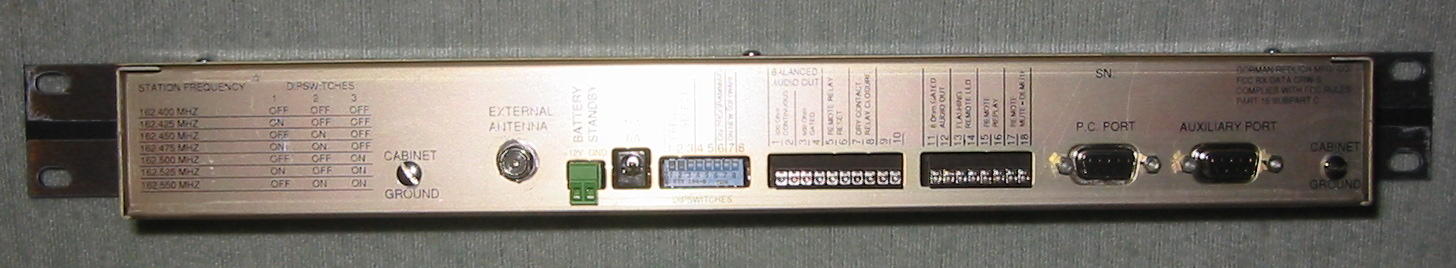

Additional Product Images
